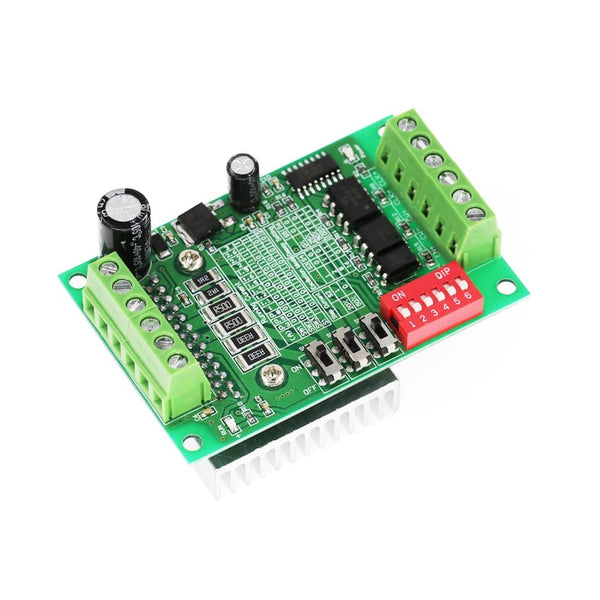

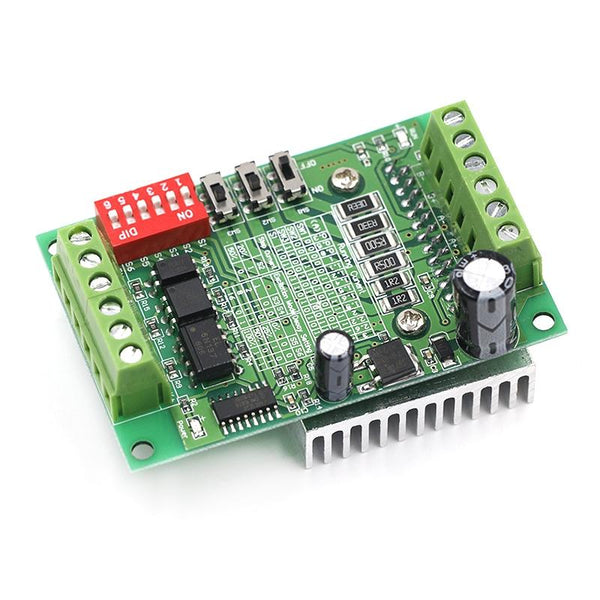

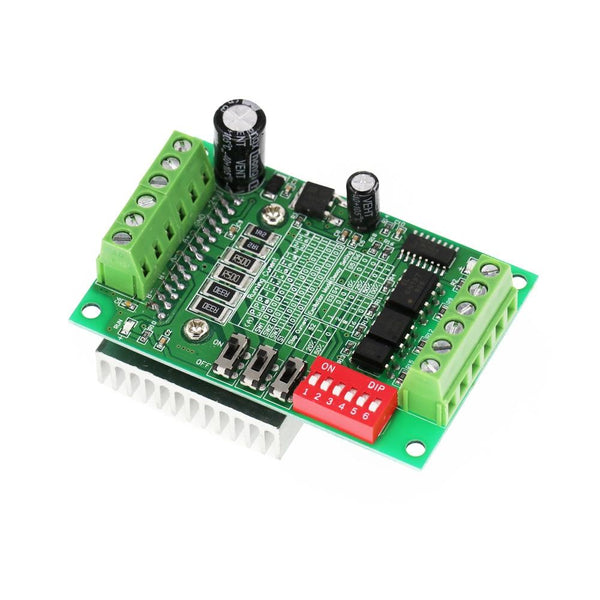

TB6560 3A 10V-35V Stepper Motor Driver Controller Board(Green)
Delivery Charges:
- A shipping fee of R79 applies on all orders
Processing and Delivery Times:
- Order Cut-Off Time: 2 PM South African Standard Time
- Processing & Handling: 1–3 Business Days (Monday - Friday)
- Transit Time: 6–12 Business Days (Monday - Friday)
Order Updates and Tracking:
- We’ll keep you updated on your order status via SMS and email.
Customs and Identification:
- Customs Clearance: We handle customs through Evertrend.co.za's import license, usually without requiring your ID.
- Exceptions: If your ID is needed for customs, we’ll reach out to you directly.
- Privacy Assurance: Any ID information required is kept confidential, used solely for customs purposes, and accessed only by authorized personnel.
Shipping Restrictions:
- We currently ship only within South Africa.
Returns and Compensation:
- Return Policy: You can return items in new condition within 7 days for a refund, excluding shipping charges. Please contact us at sales@evertrend.co.za.
- Damaged or Incorrect Shipments: If you receive a damaged or incorrect item, report it within 7 days with proof for compensation. Contact us at sales@evertrend.co.za.
Duties and Taxes:
- No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
Contact Us:
50 Constantia Boulevard,
Johannesburg,
Gauteng,
1709,
South Africa
Email: sales@evertrend.co.za
Phone: +27 10 448 7027
Product Details
1. The working voltage is DC 10V-35V. It is recommended to use a switching power supply DC24V for power supply.
2. Using 6N137 high-speed optical coupling to ensure high speed without losing step.
3. Using Toshiba TB6560AHQ chip, there are built-in low-voltage shutdown, overheating shutdown and overcurrent protection circuits to ensure performance.
4. The rated output (max) is: +/-3A, with a vertex value of 3.5A.
5. It is suitable for two-phase/four-phase/four-wire/six-wire stepping motor with 42,57 stepping within 3A, but not suitable for stepping motor with more than 3A.
6. Automatic half-flow function.
7. Subdivision: Full step, half step, 1/8 step, 1/16 step, maximum 16 subdivision.
8. Dimensions: Width 50 x length 75 x height 35 (MM)
9. Weight: 83G
10. This module does not have any protection circuit, so you must be very careful when using it, otherwise the chip is easy to burn out.
Features in similar products:
1. The current level can be adjusted step by step to meet your multiple application requirements.
2. Automatic half flow is adjustable.
3. Using 6N137 high-speed optical coupling to ensure high speed without losing step.
4. The board printing instructions can be operated without manual.

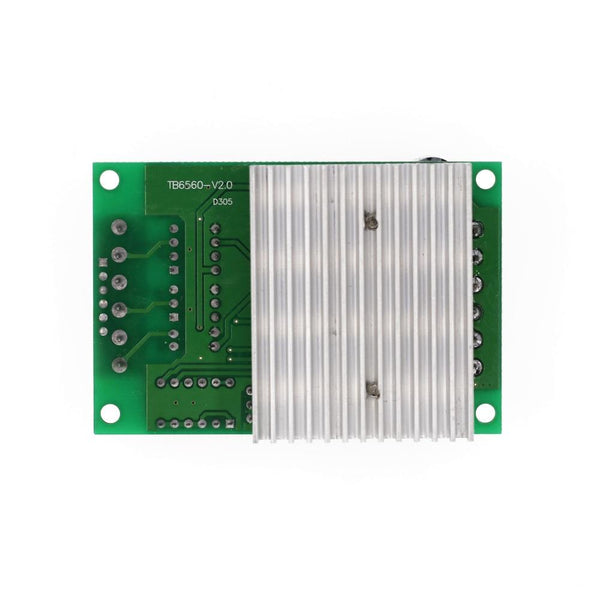

5. Adopt thick and densely toothed radiator for good heat dissipation.
