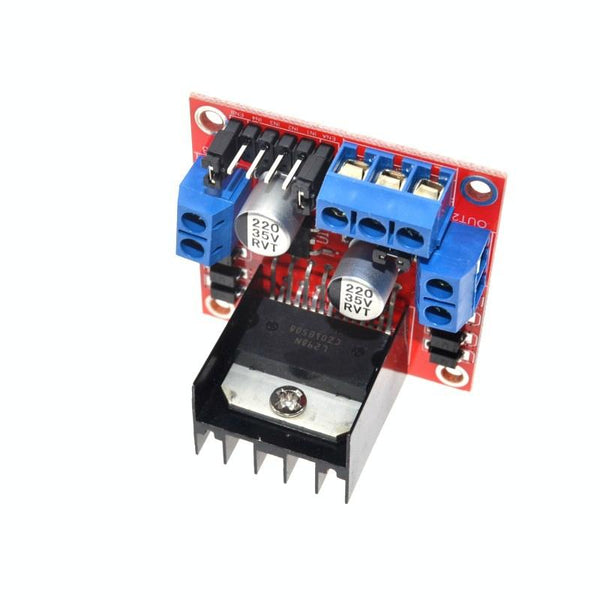

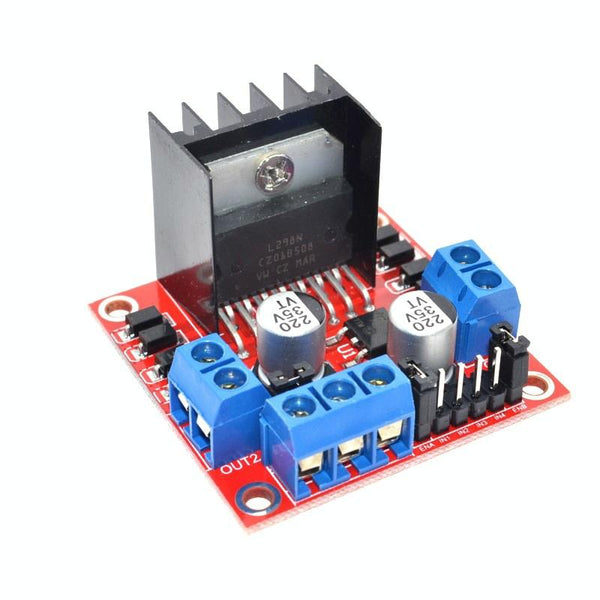

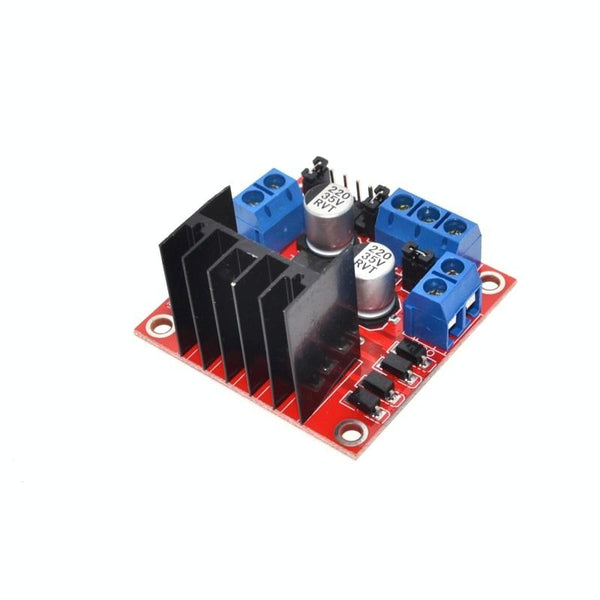

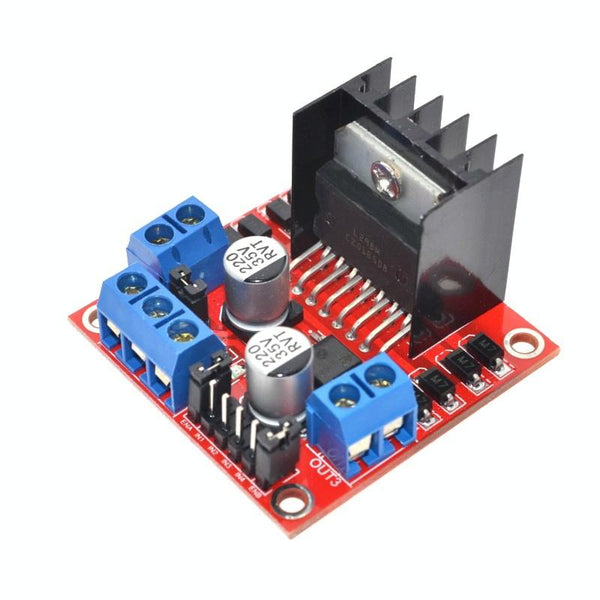

2 PCS HW-095A L298N Motor Drive Board Module DC Stepper Motor Robot Smart Car
Delivery Charges:
- A shipping fee of R79 applies on all orders
Processing and Delivery Times:
- Order Cut-Off Time: 2 PM South African Standard Time
- Processing & Handling: 1–3 Business Days (Monday - Friday)
- Transit Time: 6–12 Business Days (Monday - Friday)
Order Updates and Tracking:
- We’ll keep you updated on your order status via SMS and email.
Customs and Identification:
- Customs Clearance: We handle customs through Evertrend.co.za's import license, usually without requiring your ID.
- Exceptions: If your ID is needed for customs, we’ll reach out to you directly.
- Privacy Assurance: Any ID information required is kept confidential, used solely for customs purposes, and accessed only by authorized personnel.
Shipping Restrictions:
- We currently ship only within South Africa.
Returns and Compensation:
- Return Policy: You can return items in new condition within 7 days for a refund, excluding shipping charges. Please contact us at sales@evertrend.co.za.
- Damaged or Incorrect Shipments: If you receive a damaged or incorrect item, report it within 7 days with proof for compensation. Contact us at sales@evertrend.co.za.
Duties and Taxes:
- No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
Contact Us:
50 Constantia Boulevard,
Johannesburg,
Gauteng,
1709,
South Africa
Email: sales@evertrend.co.za
Phone: +27 10 448 7027
Product Details
1. The module uses STs L298N as the main driving chip, which has the characteristics of strong driving ability, low heat generation and strong anti-jamming ability.
2. The module can use the built-in 78M05 to work through the drive power supply, but in order to avoid damage to the voltage regulator chip, when using a drive voltage greater than 12V, please use an external 5V logic power supply
3. This module uses large-capacity filter capacitors and freewheeling protection diodes, which can improve reliability
4. The high-voltage and high-current full-bridge driver with two bridges can be used to drive inductive loads such as DC motors, stepping motors, relay coils, etc.

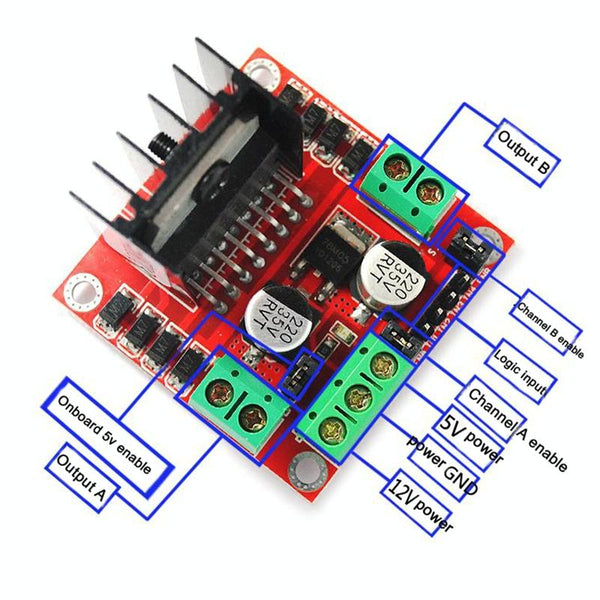

5. It has two enable control terminals, allowing or prohibiting the device to work without being affected by the input signal. There is a logic power input terminal to make the internal logic circuit work at low voltage.
6. Features: high working voltage, large output current, using standard logic level signal control
7. An external detection resistor can be connected to feedback the change to the control circuit
8. Drive voltage: 5-35v
9. Drive current: 2A
10. Working voltage: 5v
11. Working current: 0-36mA
12. Storage temperature: -20 to 135 degrees Celsius

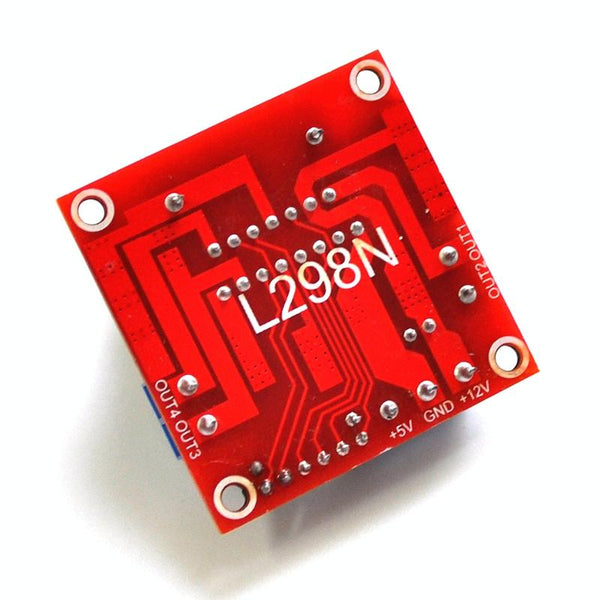

13. Main control chip: L298N
14. Packing: Individually packed in anti-static bag
15. Rated power: 25w
16. Working mode: double H-bridge drive
17. Weight: 30g
18. Size: 43x43x27mm
