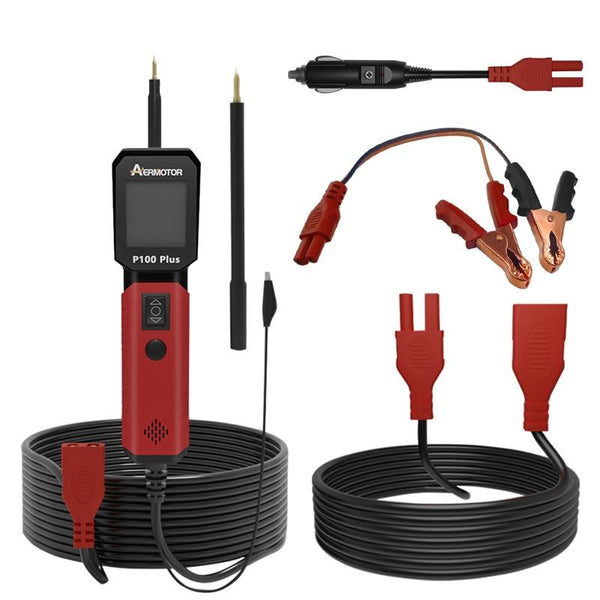

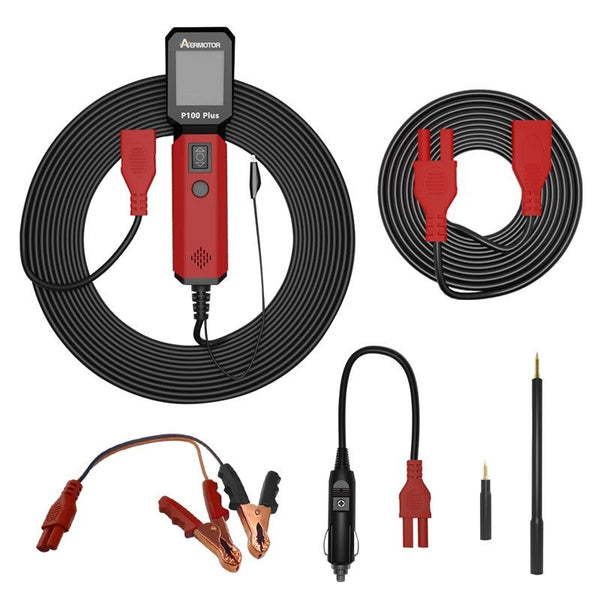

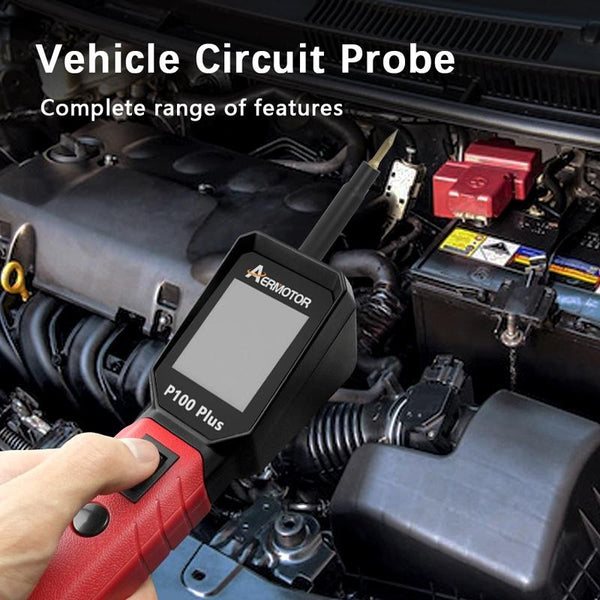

AERMOTOR P100 Plus 12V 24V Car Circuit Tester
In Stock
Regular price
R 1,926.00
R 4,085.00
Save
R 2,159.00
(52% off)
Estimated delivery: - .
Courier company:
Buffalo Logistics
Buffalo Logistics
UPC: 6922651151167
From R175/month with
|
Find out more
From R963/month with
|
Find out more
100
AERMOTOR P100 Plus 12V 24V Car Circuit Tester
Delivery Charges:
- A shipping fee of R79 applies on all orders
Processing and Delivery Times:
- Order Cut-Off Time: 2 PM South African Standard Time
- Processing & Handling: 1–3 Business Days (Monday - Friday)
- Transit Time: 6–12 Business Days (Monday - Friday)
Order Updates and Tracking:
- We’ll keep you updated on your order status via SMS and email.
Customs and Identification:
- Customs Clearance: We handle customs through Evertrend.co.za's import license, usually without requiring your ID.
- Exceptions: If your ID is needed for customs, we’ll reach out to you directly.
- Privacy Assurance: Any ID information required is kept confidential, used solely for customs purposes, and accessed only by authorized personnel.
Shipping Restrictions:
- We currently ship only within South Africa.
Returns and Compensation:
- Return Policy: You can return items in new condition within 7 days for a refund, excluding shipping charges. Please contact us at sales@evertrend.co.za.
- Damaged or Incorrect Shipments: If you receive a damaged or incorrect item, report it within 7 days with proof for compensation. Contact us at sales@evertrend.co.za.
Duties and Taxes:
- No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
Contact Us:
50 Constantia Boulevard,
Johannesburg,
Gauteng,
1709,
South Africa
Email: sales@evertrend.co.za
Phone: +27 10 448 7027
Product Details
Feature

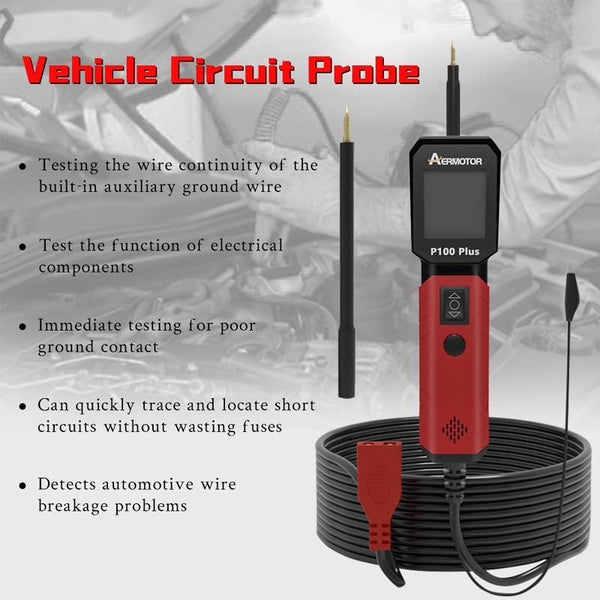

1. Perform current injection, measurement, ground test, polarity test, continuity test and component activation.
2. Ergonomic housing design with waterproof, rugged, blow-molded housing, easy to handle and store.
4. There are 4 modes to diagnose the electrical systems.(DC voltage, AC voltage, Resistance, Diode)
5. AC- RMS, AC peak to peak, frequency and pulse width for signal testing.
6. 8-amp circuit breaker, automatic reset, no button to press.
7. Automatically detects positive, negative and open circuit.
8. Large color screen LCD with easy to navigate user menu.
Functions
1. Find The Short Circuits: In most cases, a short circuit will appear as a blown fuse or a tripping of an electrical protection device.Use the probe tip to activate and energize each of the fuse contacts..The contact which trips the circuit breaker is the shorted circuit.
2. Find The Bad Ground: Probe the suspected ground wire or contact with the probe tip. If the circuit breaker tripped, this circuit is more than likely a good ground.
3. Testing Trailer Lights: While the tool in DC Voltage mode, clip the auxiliary ground lead to the trailer ground , probe the contacts at the jack and then apply voltage to the probe tip. This lets you check the function and orientation of the connector and trailer lights.
4. Check Continuity: While the tool is in Resistance mode, using the probe tip with chassis is ground or the auxiliary ground lead, continuity can be tested on wires and components attached or disconnected from the electrical system of vehicle.
5. Activating Component: The component activation function is designed to generate activation signals to the tested components, such as activating lights, motors and other on-board electric equipments.
6. Signal Circuit Testing: Once you extract a DTC from the vehicle and realize that troubleshooting begins with some kind of sensor circuit, there is a quick test you can perform to verify the code. Testing your sensor is easy while using the tool.
7. Voltage and Polarity Testing: While the tool is in DC Voltage mode, contact the probe tip to a positive circuit. If contact the probe tip to an open circuit, neither of the LED will light.
Specifications
1. DC voltage range: 0-65V
2. Resistance range: 0-100 K Ohm
3. Rated current: 1-10 amps
4. Frequency response of sound passage: 0Hz to 10Khz.
5. Extension cable length: 20ft
1. Perform current injection, measurement, ground test, polarity test, continuity test and component activation.
2. Ergonomic housing design with waterproof, rugged, blow-molded housing, easy to handle and store.
4. There are 4 modes to diagnose the electrical systems.(DC voltage, AC voltage, Resistance, Diode)
5. AC- RMS, AC peak to peak, frequency and pulse width for signal testing.
6. 8-amp circuit breaker, automatic reset, no button to press.
7. Automatically detects positive, negative and open circuit.
8. Large color screen LCD with easy to navigate user menu.
Functions
1. Find The Short Circuits: In most cases, a short circuit will appear as a blown fuse or a tripping of an electrical protection device.Use the probe tip to activate and energize each of the fuse contacts..The contact which trips the circuit breaker is the shorted circuit.
2. Find The Bad Ground: Probe the suspected ground wire or contact with the probe tip. If the circuit breaker tripped, this circuit is more than likely a good ground.
3. Testing Trailer Lights: While the tool in DC Voltage mode, clip the auxiliary ground lead to the trailer ground , probe the contacts at the jack and then apply voltage to the probe tip. This lets you check the function and orientation of the connector and trailer lights.
4. Check Continuity: While the tool is in Resistance mode, using the probe tip with chassis is ground or the auxiliary ground lead, continuity can be tested on wires and components attached or disconnected from the electrical system of vehicle.
5. Activating Component: The component activation function is designed to generate activation signals to the tested components, such as activating lights, motors and other on-board electric equipments.
6. Signal Circuit Testing: Once you extract a DTC from the vehicle and realize that troubleshooting begins with some kind of sensor circuit, there is a quick test you can perform to verify the code. Testing your sensor is easy while using the tool.
7. Voltage and Polarity Testing: While the tool is in DC Voltage mode, contact the probe tip to a positive circuit. If contact the probe tip to an open circuit, neither of the LED will light.
Specifications
1. DC voltage range: 0-65V
2. Resistance range: 0-100 K Ohm
3. Rated current: 1-10 amps
4. Frequency response of sound passage: 0Hz to 10Khz.
5. Extension cable length: 20ft
