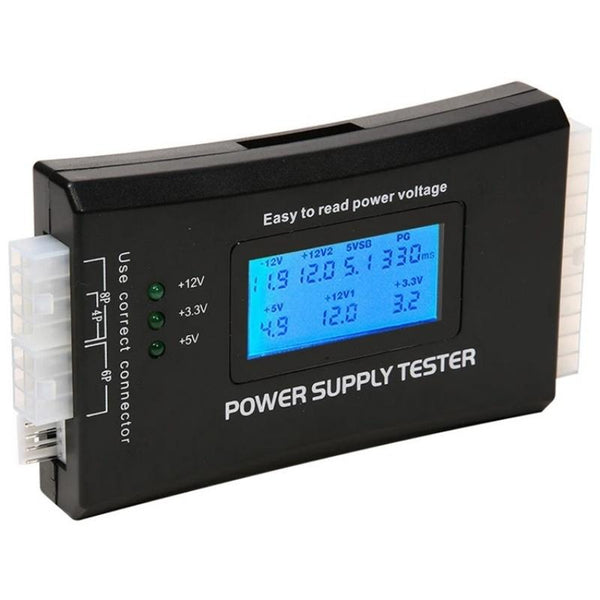

YNS-001 ATX Measuring Checker Diagnostic Tool Digital Display Computer Power Supply Tester
In Stock
Regular price
R 329.00
R 658.00
Save
R 329.00
(50% off)
Estimated delivery: - .
Courier company:
Buffalo Logistics
Buffalo Logistics
UPC: 6922564098256
From R30/month with
|
Find out more
From R165/month with
|
Find out more
100
YNS-001 ATX Measuring Checker Diagnostic Tool Digital Display Computer Power Supply Tester
Delivery Charges:
- A shipping fee of R79 applies on all orders
Processing and Delivery Times:
- Order Cut-Off Time: 2 PM South African Standard Time
- Processing & Handling: 1–3 Business Days (Monday - Friday)
- Transit Time: 6–12 Business Days (Monday - Friday)
Order Updates and Tracking:
- We’ll keep you updated on your order status via SMS and email.
Customs and Identification:
- Customs Clearance: We handle customs through Evertrend.co.za's import license, usually without requiring your ID.
- Exceptions: If your ID is needed for customs, we’ll reach out to you directly.
- Privacy Assurance: Any ID information required is kept confidential, used solely for customs purposes, and accessed only by authorized personnel.
Shipping Restrictions:
- We currently ship only within South Africa.
Returns and Compensation:
- Return Policy: You can return items in new condition within 7 days for a refund, excluding shipping charges. Please contact us at sales@evertrend.co.za.
- Damaged or Incorrect Shipments: If you receive a damaged or incorrect item, report it within 7 days with proof for compensation. Contact us at sales@evertrend.co.za.
Duties and Taxes:
- No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
Contact Us:
50 Constantia Boulevard,
Johannesburg,
Gauteng,
1709,
South Africa
Email: sales@evertrend.co.za
Phone: +27 10 448 7027
Product Details
1. Nowadays, there are more and more power output groups. As long as one of them has a problem, the hardware of the computer system may not work properly or even burn out related accessories
2. This power supply tester only needs to connect the ATX connector of the power supply to simply and intuitively know whether the output of each power supply is normal
3. It can detect ATX, BTX, ITX, TFX computer power supplies, and can display each group of voltage and PG value on LCD. It is a convenient instrument for quickly detecting computer power supplies
Operation method:
1. Insert the unloaded 20Pin or 24Pin plug of the power supply into the corresponding position of the power supply tester. Turn on the power supply, and "beep" two startup sounds will sound at the same time. If the values of each group do not flash and alarm, it means that the output power of this power supply is normal. If the corresponding voltage or PG value is displayed as a flashing alarm state, it means that this power supply is a faulty power supply! The test related values can refer to the following chart

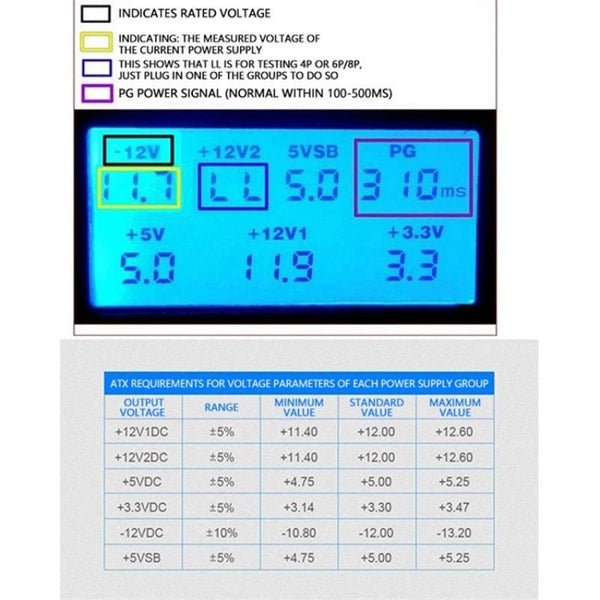

(Tip: If you only plug in the 20Pin or 24Pin interface tester, and the screen (+12V2) alarms and displays LL, the LL displayed here is for testing 4P or 6P/8P. If it is not plugged in, you can ignore it. Or just plug in one of the groups. Please make sure that 4P must be plugged in the 4P position! Don't plug it wrong!)
2. Other large 4P (HDD interface), small 4P (floppy drive interface), 4P/8P (CPU interface), 6P (graphics card interface), SATA interface, these interfaces are only plugged in when they need to be tested. If not tested, they can be left unplugged
3. Plug in the large 4P (HDD interface), small 4P (floppy drive interface) tester, the +12V and +5V display lights on the left (if the lights are not on, it means that this group of lines is faulty.)
4. Plug in the 4P/8P (CPU interface), 6P (graphics card interface) tester, and the screen (+12V2) displays the test voltage (if there is a fault, it will flash and alarm)
5. Plug in the SATA interface tester, and the +12V, +5V, and +3.3V indicators on the left will light up (If the indicator light is off, it means that this group of circuits is faulty. Some manufacturers' power supply SATA interfaces do not have +3.3V voltage output.)
Specifications:
1. Voltage input: 20/40PIN (ATX power supply)
2. Voltage detection: +12V -12V +5V +3.3V 5VSB 12VPG
3. Connection port: Floppy HDD COROM SATA 4pin(P4) 8pin(Dual-CPU) 6pin(PCI-E)
Note:
1. If the +3.3V indicator light does not light up when the SATA interface tester is plugged in, it is because the power supply SATA interface on the market now has 4 or 5 wires! First, confirm whether your power supply SATA interface has 4 or 5 wires. If it has 4 wires, there is no +3.3V output. Only 5 wires have +3.3V output.
2. Try not to hot-plug when using! If hot-plugging is performed, the test data may have some errors.
2. This power supply tester only needs to connect the ATX connector of the power supply to simply and intuitively know whether the output of each power supply is normal
3. It can detect ATX, BTX, ITX, TFX computer power supplies, and can display each group of voltage and PG value on LCD. It is a convenient instrument for quickly detecting computer power supplies
Operation method:
1. Insert the unloaded 20Pin or 24Pin plug of the power supply into the corresponding position of the power supply tester. Turn on the power supply, and "beep" two startup sounds will sound at the same time. If the values of each group do not flash and alarm, it means that the output power of this power supply is normal. If the corresponding voltage or PG value is displayed as a flashing alarm state, it means that this power supply is a faulty power supply! The test related values can refer to the following chart
(Tip: If you only plug in the 20Pin or 24Pin interface tester, and the screen (+12V2) alarms and displays LL, the LL displayed here is for testing 4P or 6P/8P. If it is not plugged in, you can ignore it. Or just plug in one of the groups. Please make sure that 4P must be plugged in the 4P position! Don't plug it wrong!)
2. Other large 4P (HDD interface), small 4P (floppy drive interface), 4P/8P (CPU interface), 6P (graphics card interface), SATA interface, these interfaces are only plugged in when they need to be tested. If not tested, they can be left unplugged
3. Plug in the large 4P (HDD interface), small 4P (floppy drive interface) tester, the +12V and +5V display lights on the left (if the lights are not on, it means that this group of lines is faulty.)
4. Plug in the 4P/8P (CPU interface), 6P (graphics card interface) tester, and the screen (+12V2) displays the test voltage (if there is a fault, it will flash and alarm)
5. Plug in the SATA interface tester, and the +12V, +5V, and +3.3V indicators on the left will light up (If the indicator light is off, it means that this group of circuits is faulty. Some manufacturers' power supply SATA interfaces do not have +3.3V voltage output.)
Specifications:
1. Voltage input: 20/40PIN (ATX power supply)
2. Voltage detection: +12V -12V +5V +3.3V 5VSB 12VPG
3. Connection port: Floppy HDD COROM SATA 4pin(P4) 8pin(Dual-CPU) 6pin(PCI-E)
Note:
1. If the +3.3V indicator light does not light up when the SATA interface tester is plugged in, it is because the power supply SATA interface on the market now has 4 or 5 wires! First, confirm whether your power supply SATA interface has 4 or 5 wires. If it has 4 wires, there is no +3.3V output. Only 5 wires have +3.3V output.
2. Try not to hot-plug when using! If hot-plugging is performed, the test data may have some errors.
